NEW 2800 BPD Sweet De-Butanizer Package

165.1 Tonnes

Drayton Valley, Alberta, Canada

Contact for Pricing

Listing Summary

For Sale

2015

New

Certified

Listing ID

59998

Number of Units Available

Warranty

Serial Number

143431-111

Category

Refrigeration Plant

Make/Manufacturer

Propak

Package

Kids Cancer Care

Featured Listing

Fuelled Index Score

Average Deal

Listing Detail

Location

Trucking Yard

Closest City

Drayton Valley, Alberta, Canada

Package Information

Service

Sweet

Type

Number of Refrigeration Trains

Duty

Capacity

Design Capacity

Licensed Capacity

Skidded

Driver Information

Type

Horsepower

Speed

Vessel Information

ANSI Rating

Vessel Numbers

Compressor Information

Type

Number of Cylinders

Horsepower

Cooler Information

Control Panel Information

Notes

3.4.2.2.3 De-Butanizer Package
A de-butanizer package is required to produce high value condensate. The package will separate and send any incoming gas off to the compressors, preheat the inlet stream with the tower bottoms high value condensate, and reflux the gas off the top of the tower through a condenser. Gas from the tower will go to the inlet separator and condensate will be cooled and sent to storage.

Additional details to follow when drawings are finialized.

De-Butanizer Design Conditions
Quantity	One (1)
Service	Sweet
Design Class*	150 ANSI 200 psig @ 204oF	1,379 kPag @ 96°C
Liquid Inlet Rate (Wild Condensate)	2,803 BPD	446 m3/d
Stabilized Condensate Production	2,315 BPD	368 m3/d
Condensate Temperature to Storage	104oF	40°C
Cooler Ambient Design Temp.	90oF	32°C
*Flanges to be 300#

The package will include the following equipment:
•	V-140 feed flash drum (4’ ID x 10’ S/S or 1219 mm x 3048mm)
o	Turbine meter on FFD water boot outlet
•	Two (2) @ 100% feed pumps (10HP SPX VLK-BB)
•	Three (3) BEU feed/bottoms heat exchangers (1’-4” OD x 15’ FOF/S or 406 mm OD x 4572 mm FOF/S // Shell & Tube sides rated: 200 psi @ 96oF or 1379 kPag @ 204oC)
•	V-500 debutanizer tower with break flange at roof and platform for access (3’ ID x 62’ S/S or 914 mm ID x 18898 mm S/S)
•	Reflux system consisting of:
o	cooler (Air-X 15HP)
o	drum (V-573 3’-6” ID x 10’ S/S or 1067 mm ID x 3048 S/S), and
o	two (2) @ 100% Sundyne pumps (5HP) – to be confirmed
•	H-633 Reboiler (details to follow)
•	Rundown cooler (Air-X 25 HP VFD compatible)
o	Fuel gas scrubber
•	Micromotion meter to measure condensate before storage
•	BDV sized to relieve to 60 psi in 15 minutes
•	Gate valves will be used on all hot service piping

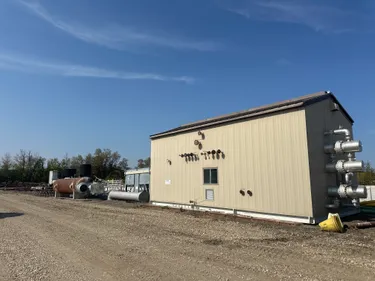

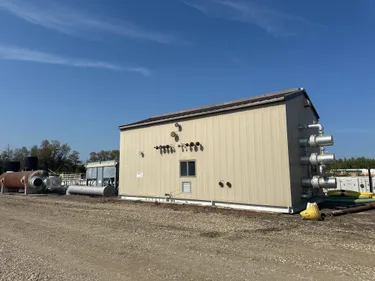

The coolers and reboiler will be installed separately; all other equipment will be
packaged on a vendor-supplied skid with a building.

Heater 30’

Tower 48’

Certified Report

Location

Name

Drayton Valley, Alberta

Type

Yard

Status

Still in Operation

Skirting needs removal

Connected to piping

Welded down to piles

On a gravel pad

Electrical connected

Vessels cleaned out

Shiploose items

Yes

Certified Report Notes
