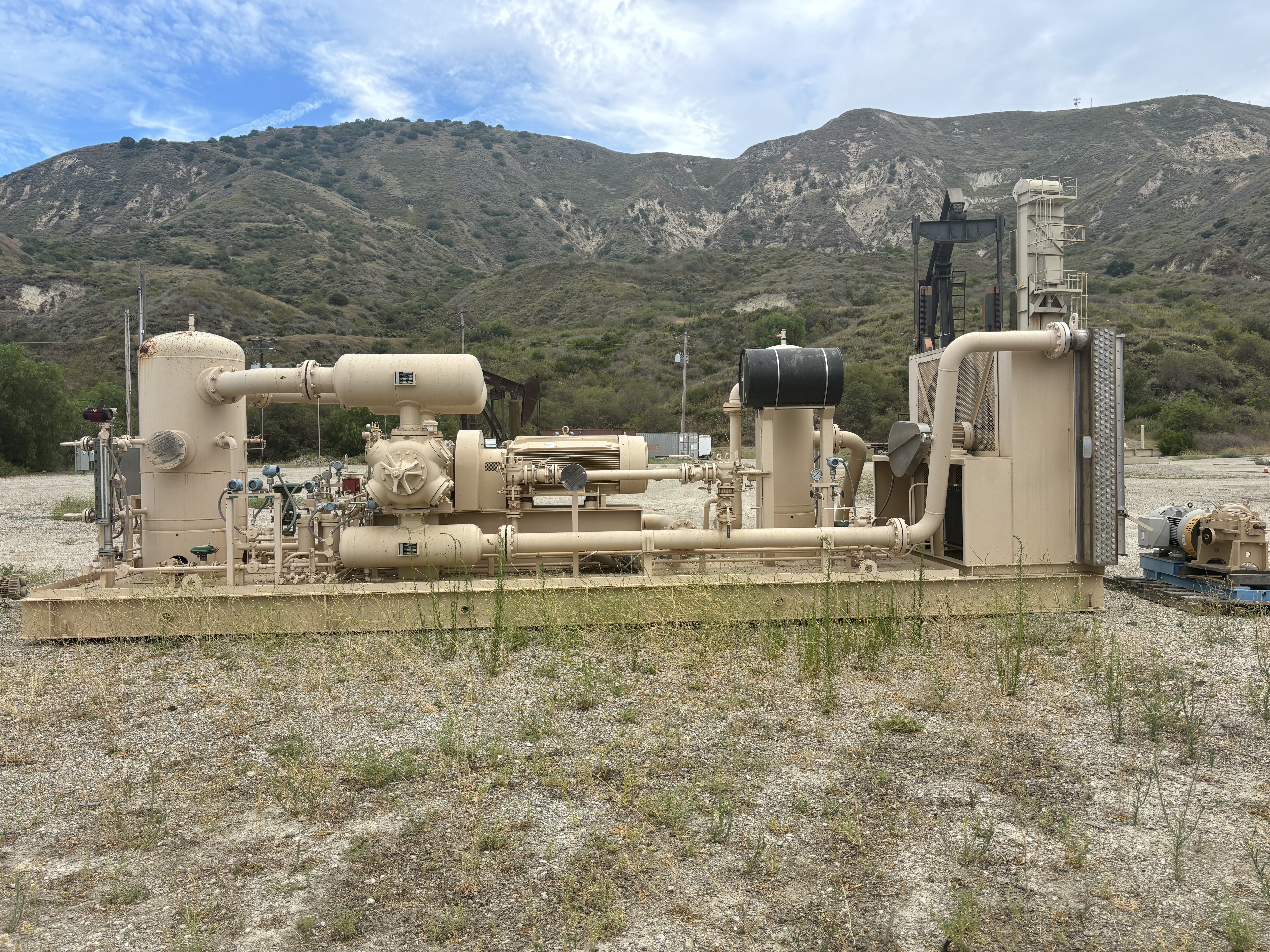

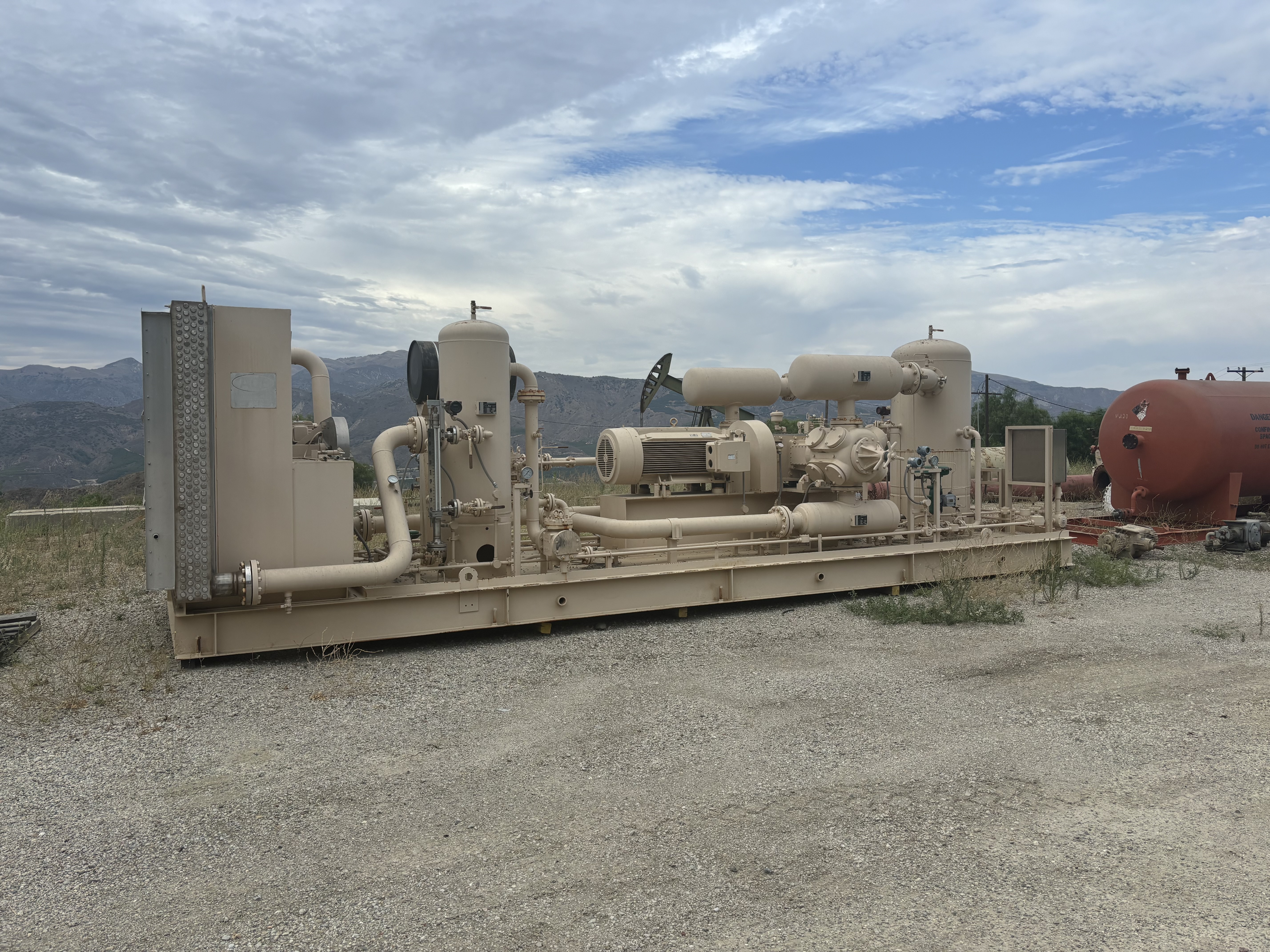

400 HP Teco Ariel JGJ/2 1-Stage Compressor Package

California, United States

Contact for Pricing

Listing Summary

For Sale

Used

Verified

Listing ID

59862

Number of Units Available

Warranty

Category

Compressor Package

Make/Manufacturer

Ariel

Package

Kids Cancer Care

Featured Listing

Listing Detail

Location

Equipment - California

Closest City

California, United States

Package Information

Horsepower

400 BHP

Service

Stage

MAWP

500 PSI

Run Time

Vessel Registration Numbers

Driver Information

Type

Electric Motor

Horsepower

400 BHP

Driver Make

TECO

Speed

1,800 RPM

Compressor Information

Type

Reciprocating

Compressor Make

Ariel

Compressor Model

JGJ/2

Number of Cylinders

Cylinder Size

(1) 11.5" , (2) 11.5"

Cooler Information

Cooler Make

ACE

Cooler Model

C72M-9

Cooler Serial Number

14088VD

Control Panel Information

Notes

Make: TECO Erstinghouse
- 400 HP
- 1800 RPM
- 460/3/60 VAC
- TEFC enclosure
- 5009B frame
- Class “F” insulation
- 4140 short keyless shaft
- UL & CSA approved for inverter duty per NEMA MG1 PART 31
- Space heaters 120/1/60 VAC
- Suitable for NEC Class I Division II Group C&D installation

compressor drive train assembly as per the following:
- Double flexing disc coupling with two steel hubs, to provide connection between the compressor and
the motor driver (see torsional study considerations below)
- Coupling guard for coupling to driver, built to suit

Cooler Make: ACE
Capacity: 6.71 MMSCFD
ACE model C72M-9, or equal, horizontal air discharge, finned tube air cooled heat exchanger as per the
following:
- One (1) discharge gas cooling section as per the following
SA-240 304 stainless steel headers
SA-249 304 stainless steel welded tubes
5005 marine grade aluminum fins
Manual louvers
ASME coded stamped w/ National Board registration
- Mounted electric motor driven fan assembly
- Cooler structure as per the following
White metal blasted
Zinc hot spay metalized

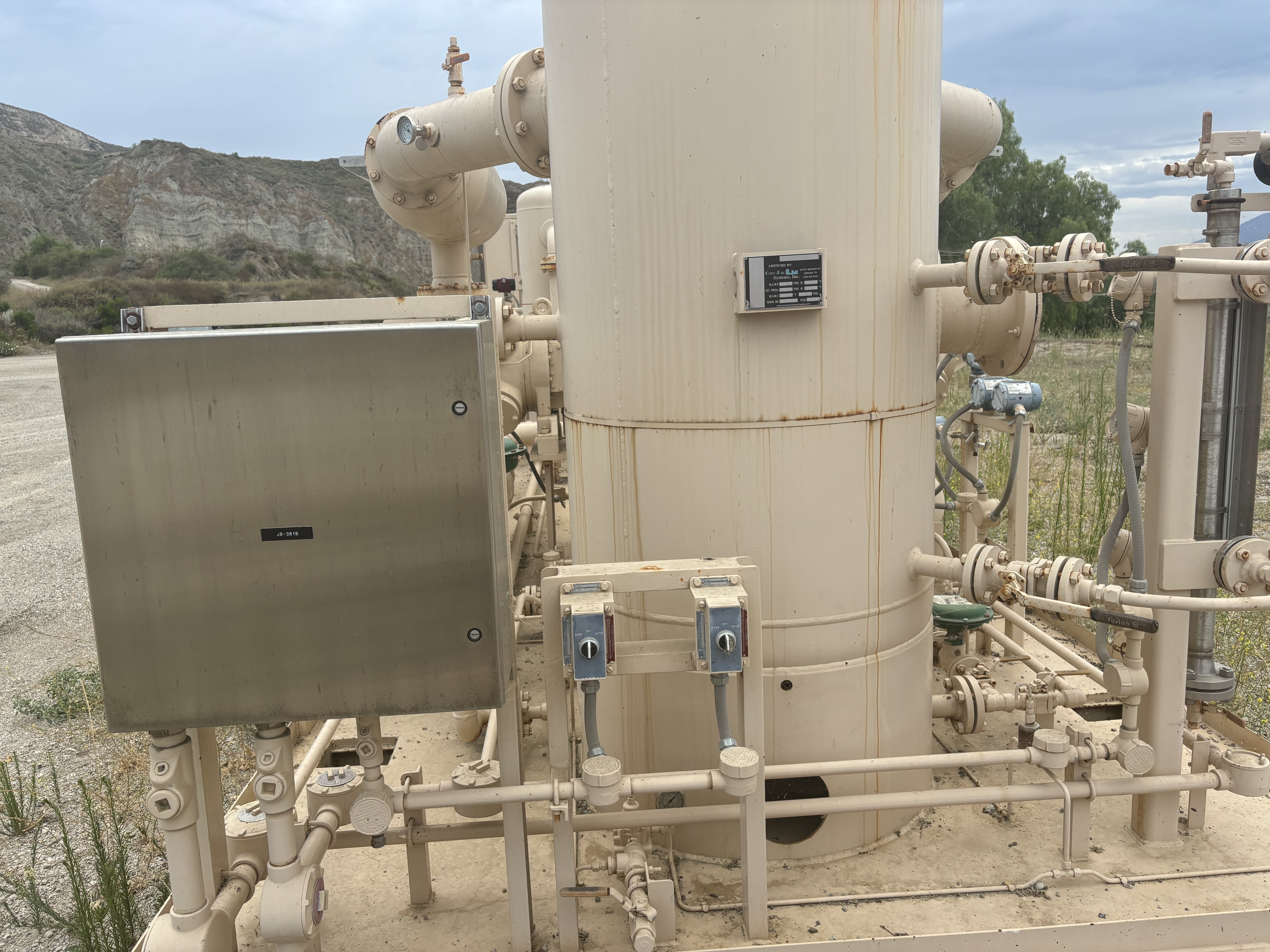

30” OD x 96” seam/seam vertical suction scrubber, sized per API 11P Class “C” (K = .18), fabricated/equipped
as per the following:
- Carbon steel per SA-106/B, SA-234-WPB, SA-105
- Designed, fabricated, tested, inspected and stamped to ASME Sec VIII Div 1
- Re-pads on inlet/outlet nozzle connections
- One (1) start-up strainer cone style 200% open surface area
- One (1) stainless steel mesh pad type mist extractor
- One (1) reflex sight glass complete w/ gauge cocks
- One (1) magnetic type bridle mounted level assembly complete:
One (1) level switch high/high (alarm)
One (1) level transmitter (open/close dump valve)
One (1) level gauge (flag type)
One (1) level switch low/low (alarm)
Isolation valves
- One (1) D-2, or equal, pneumatic valve

24” OD x 60” seam/seam vertical discharge scrubber, sized per API 11P Class “B” (K = .25),
fabricated/equipped as per the following:
- Carbon steel per SA-106/B, SA-234-WPB, SA-105
- Designed, fabricated, tested, inspected and stamped to ASME Sec VIII Div 1
- One (1) stainless steel mesh pad type mist extractor
- One (1) magnetic type bridle mounted level assembly complete:
One (1) level switch high/high (alarm)
One (1) level transmitter (open/close dump valve)
One (1) level gauge (flag type)
One (1) level switch low/low (alarm)
Isolation valves
- One (1) D-2, or equal, pneumatic valve

- Two (2) – 18” OD x 36” seam/seam 1st stage suction pulsation bottles
- Two (2) – 14” OD x 28” seam/seam 1st stage discharge pulsation bottle
Pulsation bottles are fabricated and equipped as per the following:
- Carbon steel per SA-106 B, SA-234-WPB, SA-105
- Designed, fabricated, tested, inspected and stamped to ASME Sec VIII Div. I
- Re-pads on inlet/outlet nozzle connections
- Designed for 2% maximum peak-to-peak pulse level
- ½” NPT drain on discharge bottles only

compressor control panel, as per Oxy standard layout, hardware requirements and programming technique,
is provided mounted and wired on each compressor skid. The control panel and equipment are rated for National
Electrical Code area classification of Class 1, Division 2, Groups C& D and is equipped as per the following:
- One (1) Allen Bradley ControLogix PLC
- One (1) Allen Bradley PanelView Plus 1250
- One (1) Ethernet connection
- One (1) type “Z panel purge system
- One (1) lot door mount HOA’s, ESD and power on light
- One (1) NEMA 4X 304 stainless steel enclosure
Package suction pressure
Suction scrubber high/high level
Suction scrubber level control
Suction scrubber low/low level
1st stage compressor discharge temperature
1st stage compressor discharge pressure
Discharge scrubber high/high level
Discharge scrubber level control
Discharge scrubber low/low level
Compressor lube oil no flow
Compressor lubricator low level
Compressor lube oil pressure
Compressor lube oil temperature
Lube oil day tank level
Compressor vibration
Cooler vibration

structural steel skid, with major equipment mounted on main structural members.
- Com-Pac Systems standard single-piece skid design
- 3/8” ASME SA-36 smooth top plates, seal-welded around skid perimeter
- Concrete ballasted in strategic areas utilizing headed concrete anchors. Each anchor is full penetration
welded to the structural members and top plate at specific points and angles to ensure superior bonding
of the skid plate, beams and concrete.
- Two inch (2”) high environmental containment barrier around perimeter of skid
- Four (2) drain connections, two located along each long axis of skid
- Two (2) draw bars, one located at each end of the skid
- Anchor bolt holes drilled on skid perimeter
- Jack bolt nuts welded to skid perimeter
- Com-Pac Systems standard AWS weld procedures apply
- UT examination of lifting lugs only no other NDE to be performed

Certified Report

Location

Name

Equipment - California, CA

Type

Yard

Status

Still in Operation

Skirting needs removal

Connected to piping

Welded down to piles

On a gravel pad

Electrical connected

Vessels cleaned out

Shiploose items

Certified Report Notes
