450 kW CAT3412 Marathon Magna 572RSL Nat Gas Generator Package

Stettler, Alberta, Canada

Contact for Pricing

Listing Summary

For Sale

Used

Verified

Listing ID

65625

Number of Units Available

Warranty

Category

Power Generator

Make/Manufacturer

Caterpillar / Marathon Magna

Package

Kids Cancer Care

Featured Listing

Listing Detail

Location

Genset - Stettler, AB

Closest City

Stettler, Alberta, Canada

Equipment Information

Generator Make

Marathon Magna

Generator Model

572RSL6425

Generator Rating

450 kW

Generator Voltage

480 Volts

Generator Frequency

60 Hz

Driver Make

Caterpillar

Driver Model

3412

Driver Fuel Type

Natural Gas

Package Type

Skidded

Run Time

Notes

Unit Summary
Generator:
Marathon Magna-MAX DVR 450kW
Driver:
Caterpillar 3412 637 HP – Vortex rebuilt - zero-hour
EJW:
AIR-X-CHANGER tube & Fin
Lube Oil Bypass Filter:
Nelson/Winslow Model 95735A
Driver Silencer:
Silex external mount
Packaging & Enclosure:
Skid mounted; fully insulated building
Commissioning / Start-Up:
Complete start up and commissioning services by highly trained and experienced Vortex field personnel
(not included in scope of supply price)
Generator
Make:
Marathon Magna-MAX DVR
Model:
572RSL6425 Synchronous AC 450KW
•
480V, 3PH, 60 Hz
•
0.8 PF Lagging
•
Continuous – H4 insulation – 105°C rise
•
PMG (Permanent Magnet Generator)
•
Regulator – PM500
•
Single bearing
Driver, Natural Gas
Driver:
Caterpillar 3412 – Vortex rebuilt – zero-hour
Power:
637 HP (475kW)
Specifications:
See attached specification sheet
Safety Shutdowns:
Available Safety Shutdowns
•
CPU95 Ignition Fault / Overspeed
•
Engine Oil Pressure LL – CCS switch
•
Engine Oil Pressure LL – Murphy switch/gauge
•
Engine Oil Level LL - Kenco
•
Engine JW Level LL - Murphy
•
Engine Auxiliary JW level LL - Murphy
•
Engine JW Temp HH
•
EJW cooler vibration HH - VibrAlert
•
Fuel Gas Scrubber HH – Murphy switch
•
Engine Vibration HH - VibrAlert
Starter / Charging System:
24 VDC c/w Alternator -provides charging for batteries
Ignition:
Altronic CPU95 Digital Ignition system
Governor:
Woodward electronic governor p/n 8290-185
Exhaust System:
Silex SE-JDDS-5-S012-F09-AL-A / 5” 150# connection
•
Expansion joint
Engine to Generator Coupling
•
SAE 14 integral to generator -flywheel mounted
•
SAE 0 bell housing mounted
Skid Edge Connections
Fuel Gas:
2” NPT
Fuel Gas Scrubber Liquid Drain:
1” NPT
Oil Drain:
Fuel Supply System
Scrubber:
BS&D 12” x 48” s/s fuel gas scrubber
•
Rated for 450 psi @ 100°F
•
C.R.N registered (AB)
•
1/16” Corrosion allowance
•
1” NPT manual drain to skid edge
Protection:
1” NPT x 1” NPT pressure safety valve set @ 66 psig
•
Vent to atmosphere
Controls:
1” 627 pressure control valve, 5-20 psig
Automatic fuel shut off valve
Filter:
1” NPT coalescing
Supply:
Outside 2” NPT connection
Cooler System
Main Engine Jacket Water:
Manufactured by AIR-X-CHANGER
•
Model # 72EH
•
Cooler data sheet part of quote
•
Steel tube / aluminum fin
Auxiliary Engine Jacket Water:
Integral to 72EH

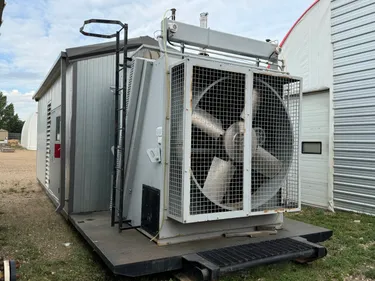

Cooler Fan and Motor:
Moore 27EDVT - 4 blade, 72” belt driven fan
•
Marathon 15HP 460V 60Hz 3Ph 254T
•
Manual louver
Power Generation Control System
Main Control Panel:
Manufacturer: Simpson Maxwell
• Model # IL-MRS16
Power Generation Electrical
Main Generator Disconnect:
Included
Main 480V Distribution:
Ace 4’ 480V 3PH 60 Hz Splitter – 600 amp
Mounted and/or Supplied breakers:
Two (2) Allen-Bradley 50A 480V 3Ph panel w/ HOA switch
Two (2) Westinghouse 100A 480V 3Ph breaker
One (1) Cutler Hammer 50A 480V 3Ph breaker
One (1) Cutler-Hammer 125A 120V 1Ph loadcentre
One (1) Hammond 30kVA 3PH 480D-208Y/120V Transformer
Skid
Skid:
38’ 6” (L) x 13’ 9” (W) x 13’ 1” (H) overall dimensions
•
Live roll connection – continuous longitude wide flange runners end to end
•
12” beam
Sub Skid:
CAT sub skid

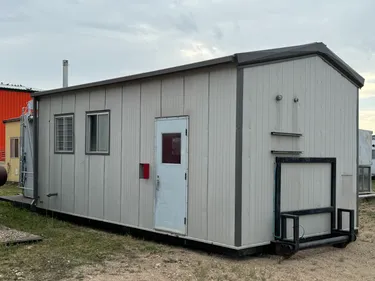

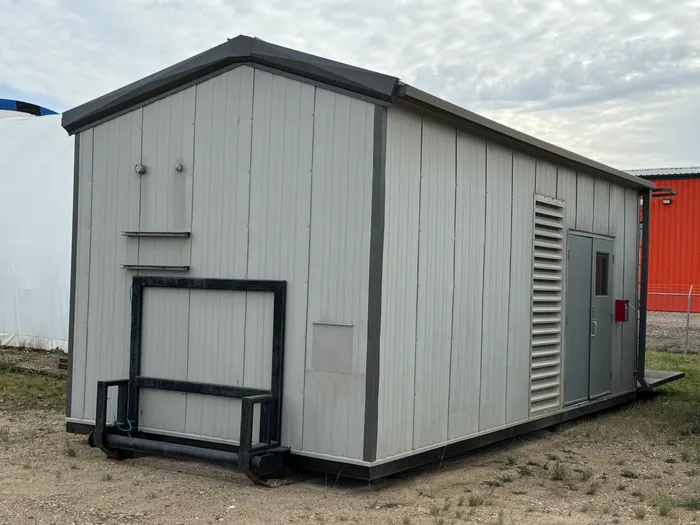

Building
Building:
14’ 10” (L) x 10’ 4” (W) x 12’ 1” (H)
Self-framer
•
Galvalume solid / Galvalume perf interior
•
Galvalume/Beige exterior
•
One 6’ x 7’ double door
•
One 3’ x 7’ man door
•
Weather stripping
•
Check chain
•
Locking and panic hardware
•
Window each door
•
two 36” x 92” air inlet louver
•
eaves trough
•
two building windows
Electrical:
Two (2) Crouse Hinds EV264 interior lights
•
incandescent fixture
120V receptacles
Miscellaneous Components:
Two (2) 8,000 BTU Catadyne Heaters
•
12” x 24” - thermostat control
•
Protective grill
•
120 volt
•
Pressure regulator
Area Classification:
General Purpose Area

Certified Report

Location

Type

Status

Still in Operation

Skirting needs removal

Connected to piping

Welded down to piles

On a gravel pad

Electrical connected

Vessels cleaned out

Shiploose items

Certified Report Notes
