Unused-Heat Exchanger shell and Tube

57.72 Tonnes

Gibbons, Alberta, Canada

Contact for Pricing

Listing Summary

For Sale

2008

New

Listing ID

52743

Number of Units Available

Warranty

Serial Number

DK2007-090E

Category

Heat Exchanger

Make/Manufacturer

Daekyung Machinery & Engineering Co. Ltd.(Korea)

Featured Listing

Fulfilled By

International Process plants

View all International Process plants Listings

Listing Detail

Dimensions

Weight

68,800 lbs

Length

Width

Height

Diameter

Location

Closest City

Gibbons, Alberta, Canada

Unit Information

Shell Pressure Rating

425 PSI

Tube Pressure Rating

500 PSI

Service

Notes

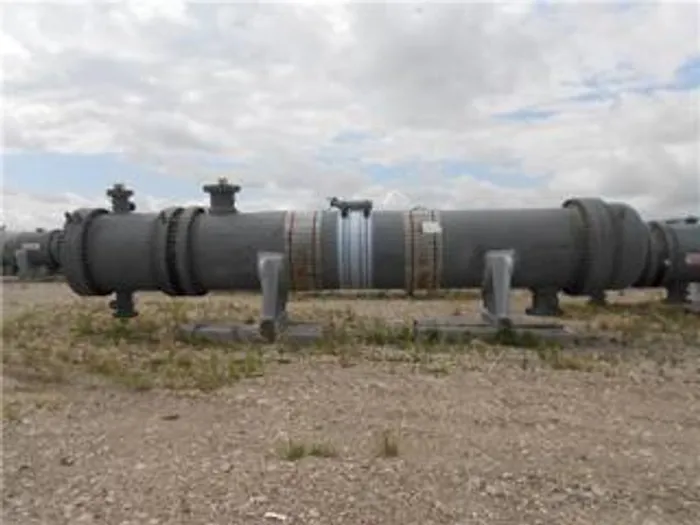

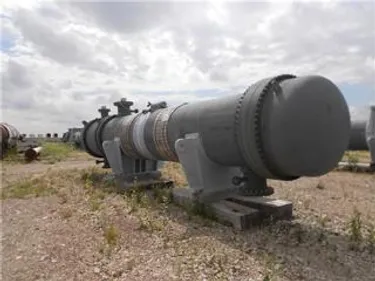

UNUSED, 6179 Sq. Ft., TP405 Stainless Steel tubes (SA268-TP405), Carbon Steel Channel Head (SA516 70),; CS floating Head, (SA266-2N)  Carbon Steel shell (SA516 70), horizontal heat exchanger. National Board Number 2421 rated for FV/425 psi at -20 to 650 degrees F; tubes rated for FV/500 psi at -20 to 650 degrees F. Manufactured by Daekyung Machinery & Engineering Co. Ltd. (Korea). Serial Number  DK2007-090E, .
Canadian Registration Number U2511.2   TEMA Type AES, Size 52 x 288.  Shell  Exchangers has (1008) straight tubes, 1" OD x 0.065" thick x  24' long, 1.25" pitch. 410SS tube sheets (SA182 F6ACL1). (1) floating head, (1) channel head with flat bolted cover. Shell is 58" diameter x 288" strati side.   Single pass shell, eight passes tube side.  Openings include: (2) Shell side nozzles are 16" NPS, (2) tube side nozzles are 10" NPS in the channel head. Design heat exchanged 114.1 mm/BTU/hr. Mounted on saddles.
Contact Information: Ross Gale (Stock # 222197)
P: +1 609 589 0627 | M: +1 732 616 4009 |
E: Ross.Gale@InternationalProcessPlants.com
