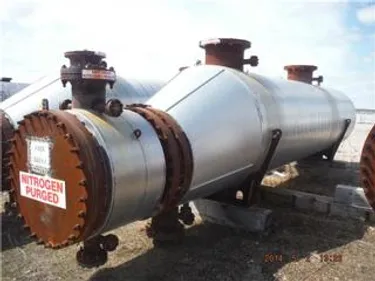

Unused -Heat Exchanger Shell and Tube

33.27 Tonnes

Gibbons, Alberta, Canada

Contact for Pricing

Listing Summary

For Sale

2008

New

Listing ID

52746

Number of Units Available

Warranty

Serial Number

07-2871

Category

Heat Exchanger

Make/Manufacturer

Exchanger Industrial (Canada)

Featured Listing

Fulfilled By

International Process plants

View all International Process plants Listings

Listing Detail

Dimensions

Weight

39,650 lbs

Length

Width

Height

Diameter

Location

Closest City

Gibbons, Alberta, Canada

Unit Information

Shell Pressure Rating

106 PSI

Tube Pressure Rating

195 PSI

Service

Notes

UNUSED, 4602 Sq. Ft., 316LSS tubes (SA213 - 316L), 316L SS Clad Shell (SA516-70N + 316L Cladding), 316L SS Clad Channel head (SA516-70N + 316L Cladding), horizontal kettle type reboiler.  NB "U" stamped. Canada Registration Number U5325.2.  Shell rated for FV/106 psi @ -20 to 350 degrees F:  Tubes rated for FV/195 psi @ -20 to 680 degrees F. Manufactured by Exchanger Industries (Canada), TEMA Type AKU.  Serial Number 07-2871, ASME Code Construction, Exchanger has (562)"U" tubes, 0.75" diameter x 16 BWG x 20' straight side (approx. 20' total length). 316L SS clad tube sheet (SA516-70N + 316L Cladding) 42" diameter x 3.4375" Thick with (1124) tube holes.  Removable tube bundle has 316LSS skid bars for bundle removal. CS Channel Head 43" diameter with flat bolted cover.  316L SS Clad Shell is 69.25" OD/68"ID diameter x 27' 3" long, 33" Overall Length, .125" to .1875" thick cladding. Openings Include:  Shell Side - (2) 24"" shell outlets, (1) 14" shell inlet (1) 12" liquid outlet; Channel Head - (1) 12" (1) 6". Single pass shell side, two pass tube side. Mounted on saddles.
Contact: Ross Gale (Stock # 222149)
P: +1 609 589 0627 | M: +1 732 616 4009 |
E: Ross.Gale@InternationalProcessPlants.com
Documents Available upon Request.
