Unused-Heat Exchanger Shell and Tube

59.75 Tonnes

Gibbons, Alberta, Canada

Contact for Pricing

Listing Summary

For Sale

2009

New

Listing ID

52749

Number of Units Available

Warranty

Serial Number

6098

Category

Heat Exchanger

Make/Manufacturer

Luigi-Resta Spa -C(Italy)

Featured Listing

Fulfilled By

International Process plants

View all International Process plants Listings

Listing Detail

Dimensions

Weight

71,210 lbs

Length

Width

Height

Diameter

Location

Closest City

Gibbons, Alberta, Canada

Unit Information

Shell Pressure Rating

2,226 PSI

Tube Pressure Rating

1,994 PSI

Service

Notes

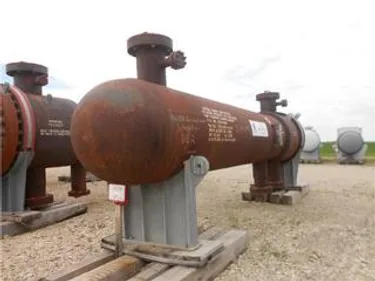

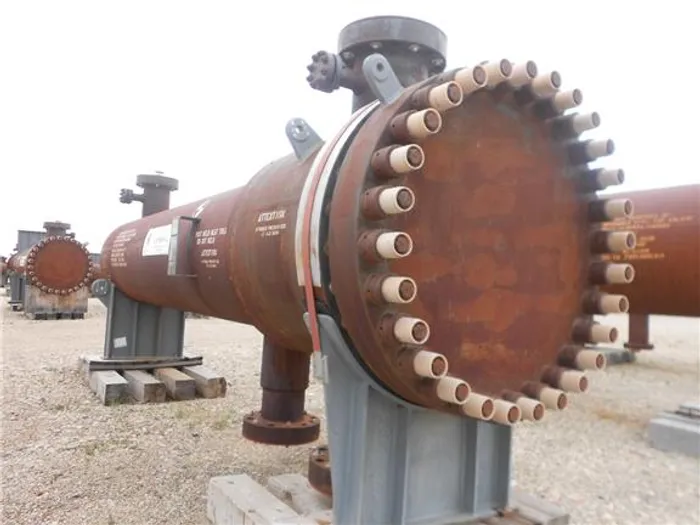

UNUSED, 3239 Sq. Ft., 321 SS U-Tube (SA213 TP321), 321SS tube sheet (SA336 F321), SS Clad heads (SA387 Cr.22 + CRO TP347), SS Clad shell, horizontal heat exchanger (SA387 Cr.22 + CRO TP347). Manufactured by Luigi-Resta SpA(Italy), TEMA type DEU, size 42 x 216.  Serial Number 6098, National Board number 883.  Canada Registration Number U8145.2.  Shell rated for FV/2226 @ -20 to 740 degrees F; tubes rated for
FV/1994 @ -20 to 840 degrees F. Exchanger has (353) "U" tubes, 1" diameter x 0.083 minimum wall thickness x 18' long straight side (approx. 36' total length).  321SS tube sheet, 43.7" diameter x 5.70" thick (with 706 holes for tubes).  SS Clad shell is 42" diameter x 20'10.23" straight side with one welded dished head.  SS Clad Channel head is 2' 11.31" long with flat bolted cover. Openings Include: shell side (2) 10" NPS, (1) 2"; tube side (2) 12" NPS (1) 2" in channel head.  Single pass shell side, two pass tube side. Mounted on saddle
Contact: Ross Gale (Stock # 222196)
P: +1 609 589 0627 | M: +1 732 616 4009 |
E: Ross.Gale@InternationalProcessPlants.com
Documents Available upon Request.
