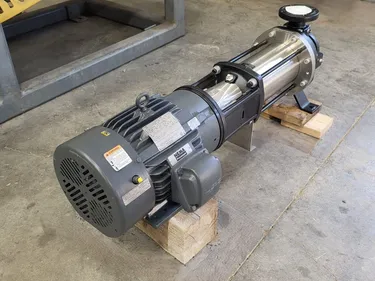

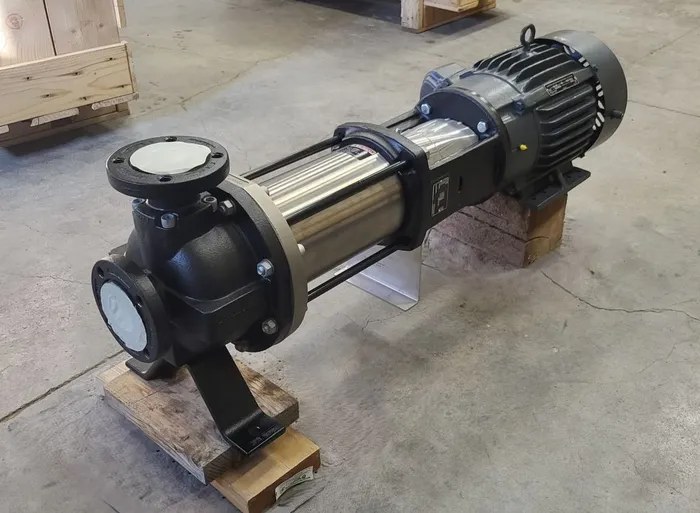

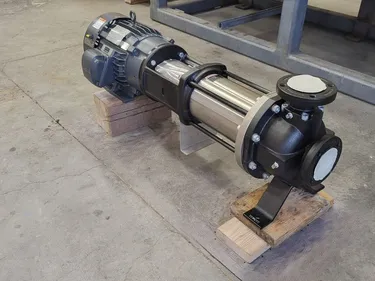

Unused Surplus Grundfos 97569954, Horizontal Multistage End-Suction Pump CR 10-10 H-G22-A-V-HQQV, With Electric Motor

1.99 Tonnes

Center, Colorado, United States

Item Sold

Listing Summary

Sold

New

Verified

Listing ID

54879

Number of Units Available

Warranty

Category

Pump

Make/Manufacturer

Grundfos

Package

Kids Cancer Care

Featured Listing

Listing Detail

Location

Closest City

Center, Colorado, United States

Package Information

Pkgd

Service

Horsepower

Driver Information

Type

Horsepower

Speed

Pump Information

Type

Centrifugal

Notes

Unused Surplus Grundfos Horizontal 10 Stage
end-suction pump CR10-10 H-G22-A-V-HQQV with
motor. Grundfos Part Number 97569954. Rated
horsepower 7.5, rated pump speed 3467 rpm, rated flow
52.8 US gpm, rated head 358.9 ft, maximum head 468.2
ft. Base Cast iron, Impellers Stainless Steel. Suction port
2 inch, outlet port 2 inch. Nidec 10 horsepower motor
flange size for motor 215TC, 3500 rpm, 3 phase, 60 Hz,
230/460 Volt, TEFC enclosure.

Unused Surplus Grundfos 97569954, Horizontal Multistage End-Suction Pump CR10-10 H-G22-A-V-HQQV With Motor.

Specifications
Manufacturer Grundfos
Part Number 97569954
Rated horsepower 7.5
Rated pump speed 3467 rpm
Rated flow 52.8 US gpm
Rated head 358.9 ft
Maximum head 468.2 ft
Stages 10
Impellers 10
Pump orientation Horizontal
End suction pump
Shaft seal arrangement Single
Code for shaft seal HQQV
Base Cast iron
Impeller Stainless steel
Maximum operating pressure 232 psi
Max pressure at stated temperature 232 psi / 194 °F, 232 psi / -4 °F
Size of suction port 	2 inch
Size of outlet port 	2 inch
Flange rating inlet 	150 lb
Nidec 10 horsepower motor
Flange size for motor 	215TC
3500 rpm
3 phase
60 HZ
230/460 volt
TEFC enclosure
Stock # 61005
