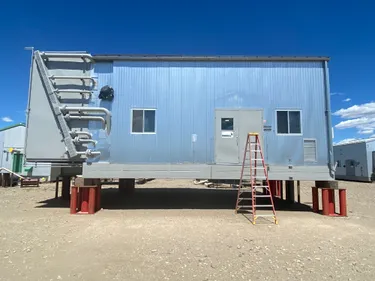

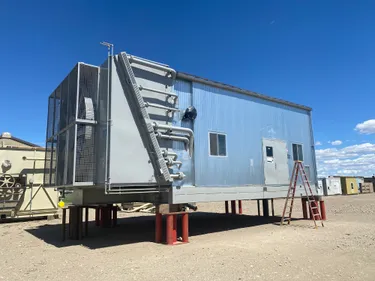

Waukesha L7042GL Ariel JGK4 3-Stage High Pressure Compressor Package

Strathmore, Alberta, Canada

Item Sold

Listing Summary

Sold

2005

Used

Certified

Listing ID

20822

Number of Units Available

Warranty

Serial Number

F-20776

Category

Compressor Package

Make/Manufacturer

Ariel

Package

Kids Cancer Care

Featured Listing

Fuelled Index Score

Listing Detail

Location

Closest City

Strathmore, Alberta, Canada

Package Information

Horsepower

1,480 BHP

Service

Sweet

Stage

MAWP

2,495 PSI

Run Time

Vessel Registration Numbers

Driver Information

Type

Engine

Horsepower

1,480 BHP

Driver Make

Waukesha

Driver Model

L7042GL

Driver Serial Number

C-1550/1

Speed

1,200 RPM

Fuel Type

Compressor Information

Type

Reciprocating

Compressor Make

Ariel

Compressor Model

JGK/4

Compressor Serial Number

F-20776

Number of Cylinders

Cooler Information

Cooler Make

AIR-X-CHANGER

Cooler Model

156EH

Control Panel Information

Control Panel Make

Allen Bradley

Control Panel Model

ControlLogix

Notes

Unit Completely overhauled
AFR Added
Single service to two service
Converted to high pressure

Cooler Manufacturing Tag*
Manufacturer: Air-X-Changer
Model#: 156EH
Job#: 054020B
Customer#: 31278

Cooler Tag*
Manufacturer: AXH Air Coolers
MAWP: 2495 PSI at 300 F
MDMT: -20 F at 2495 PSI
Serial: 218360.1
CRN: Z5641.2
Year: 2022
Hydro: 3244 PSI

Compressor Tag*
Manufacturer: Ariel Compression
Model#: JGK/4
Serial: F-20776
Stroke: 5.50"
Maximum Rated Speed: 1200 RPM
Minimum Rated Speed: 600 RPM
Maximum Rod Load Tension: 37000 LBS
Rod Load Compression: 40000 LBS
Year Built: 2005
Lube Oil Pressure: 60PSI
Lube Oil Temperature: 190 F
Lube Oil Pressure Shut Down: 35 PSI

Throws Tag 1*
Manufacturer: Ariel
Bore: 5.39"
Class: K-DW
Stroke: 5.59"
Rated RPM: 1200
MAWP: 2514 PSI
Serial: C-85357
PIST. END CL. HE: 2.0-3.6
CE: 1.0
Min Volume CL%. HE: 19.6
CE: 24.5

Throws Tag 2*
Bore: 7.875"
Stroke: 5.50"
Class: K
Rated RPM: 1200
MAWP: 1895 PSIG
Serial: C-61415

Throws Tag 3*
Manufacturer: Ariel
Bore: 12.5"
Stroke: 5.50"
Class: K
Rated RPM: 1200
MAWP: 635 PSIG
Serial: C-93042

Driver Tag*
Manufacturer: Waukesha
Model: L7042GL
Serial: C-15530/1
Comp Ratio: 10.5.1
Fuel: Natural Gas
Min. WKI: 91
IGN Timing: 10 DEG
CARB ADJ: 9.3/02
Service HP: 1448 HP
Overload HP: 1593 HP
Firing Order: 1R-6L-5R-2L-3R-4L-6R-1L-2R-5L-4R-3L
Year Built: 2005
Altitude Limit: 2500 FT
Air Inlet Temp: 100 F
Speed: 1200 RPM

Vessel Tag 1*
Certified By: Toromont Energy Systems
U
W
RT-2
Year Built: 2005
Serial: 3127883
CRN: K5461.1
CRN: T0603.2
MAWP: 1315 PSI at 300 F
MDMT: -20 F at 1315 PSI
A#: 522467

Suction Tag 1*
Certified By: Toromont Energy Systems
U
W
RT-2
Year Built: 2005
Serial: 31278P5
CRN: R8185.2
MAWP: 1315 PSI at 300 F
MDMT: -20 F at 1315 PSI
A#: 522489

Vessel Tag*
Certified By: Cado Industries
U
HT
RT-1
MAWP: 2515 PSI at 350 F
MDMT: -20 F at 2515 PSI
Serial: 3207
Year Built: 2022
CRN: Z5379.2
A#: 691683

Suction Tag 2*
Certified By: Toromont Energy Systems
U
W
RT-2
Year Built: 2005
Serial: 31278P3
CRN: T0607.2
MAWP: 655 PSI at 300 F
MDMT: -20 F at 655 PSI
A#: 522487

Vessel Tag 2*
Certified By: Toromont Energy Systems
U
W
RT-2
Year Built: 2005
Serial: 31278P4
CRN: T0608.2
MAWP: 1315 PSI at 300 F
MDMT: -20 F at 1315 PSI
A#: 522488

Scrubber Tag 1*
Certified By: Toromont Energy Systems
U
W
RT-2
Year Built: 2005
Serial: 31278S2
CRN: T0593.2
MAWP: 655 PSI at 300 F
MDMT: -20 F at 655 PSI
A#: 522492

Scrubber Tag 2*
Certified By: Toromont Energy Systems
U
W
RT-2
Year Built: 2005
Serial: 31278S1
CRN: T0587.2
MAWP: 655 PSI at 300 F
MDMT: -20 F at 655 PSI
A#: 522491

Suction Tag 3*
Certified By: Toromont Energy Systems
U
W
RT-2
Year Built: 2005
Serial: 31278P1
CRN: R3906.2
MAWP: 655 PSI at 300 F
MDMT: -20 F at 655 PSI
A#: 522484

Repair Tag 1*
Repaired By: Cado Industries
MAWP: 655 PSI at 300 F
MDMT: -20 F at 655 PSI
Serial: 31278P1
Repaired Year: 2021
CRN: R3906.2

Vessel Tag 3*
Certified By: Toromont Energy Systems
U
W
RT-2
Year Built: 2005
Serial: 31278P2
CRN: R7103.2
MAWP: 655 PSI at 300 F
MDMT: -20 F at 655 PSI
A#: 522486

Repair Tag 2*
Repaired By: Cado Industries
MAWP: 655PSI at 300 F
MDMT: -20 F at 655 PSI
Serial: 31278P2
Repaired Year: 2021
CRN: R7103.2

Control Panel Tag*
Manufactured By: Allen-Bradley

PLC Tag*
Manufactured By: Altronic
Model: EPC-150
Volts: 24 VDC
Amps: 20 A
Cycles: 60 Hz
Cass: 1
Zone: 2
Job#: A-839

Fuel Filter Tag*
Certified By: Toromont Energy Systems
Year Built: 2005
Serial: STK.532LEF
CRN: H9603.1
CRN: N4402.23
MAWP: 285 PSI at 100 F
MDMT: -20 F at 285 PSI

Serial#: "218360.1" / "F-20776" / "C-85357" / "C-61415" / "C-93042" / "C-15530/1" / "3127883" / "31278P5" / "3207" / "31278P3" / "31278P4" / "31278S2" / "31278S1" / "31278P1" / "31278P2" / "STK.532LEF"

CRN: "Z5641.2" / " K5461.1" / "T0603.2" / "R8185.2" / "Z5379.2" / "T0607.2" / "T0608.2" / "T0593.2" / "T0587.2" / "R3906.2" / "R7103.2" / "H9603.1" / " N4402.23"

A#: "522467" / "522489" / "691683" / "522487" / "522488" / "522492" / "522491" / "522484" / "522486"

Certified Report

Location

Name

Fuelled - Strathmore Yard

Type

Yard

Status

Still in Operation

Skirting needs removal

Connected to piping

Welded down to piles

On a gravel pad

Electrical connected

Vessels cleaned out

Shiploose items

Yes

Certified Report Notes
